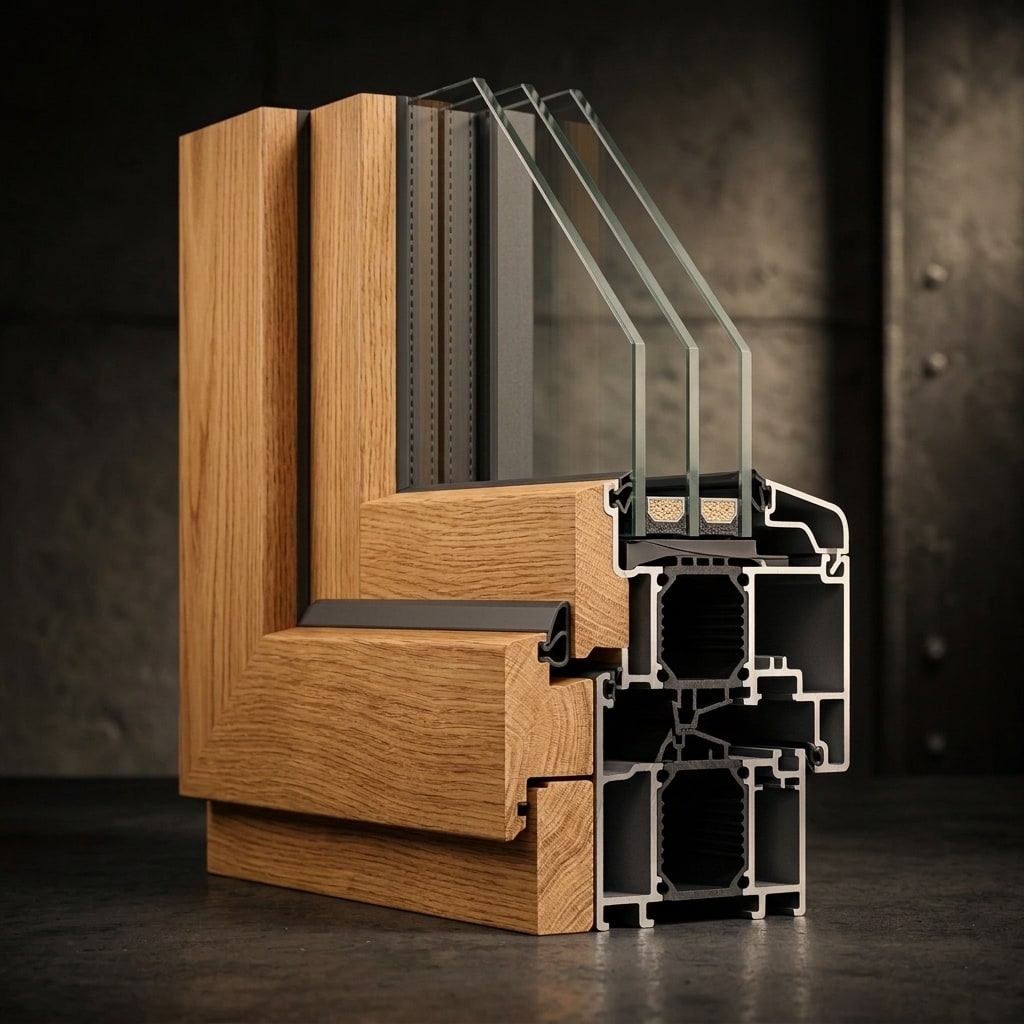

Wood-Alu Executive
Natural pine or meranti inside, with durable aluminium cladding outside.
- Thermal performance Uw
- 0.85 W/(m²·K)
- Installation depth
- 95 mm
- Glazing unit
- 40 mm, 4/14/4/14/4, Ug 0.6
- Sealing levels
- 3
European imports • KUBE
European windows. Precise installation in Israel.
A seamless combination of European imports and high-quality installation of premium wood-aluminium and PVC-aluminium window systems. Comfort, protection and expressive architecture in one project.
3 seals
in every window system
Uw from 0.77
W/(m²·K) for a reference window
Turnkey
selection, import and installation
Three KUBE solutions
Window systems for modern architecture
The values below refer to reference configurations. Final performance depends on window size, glazing, hardware and installation.

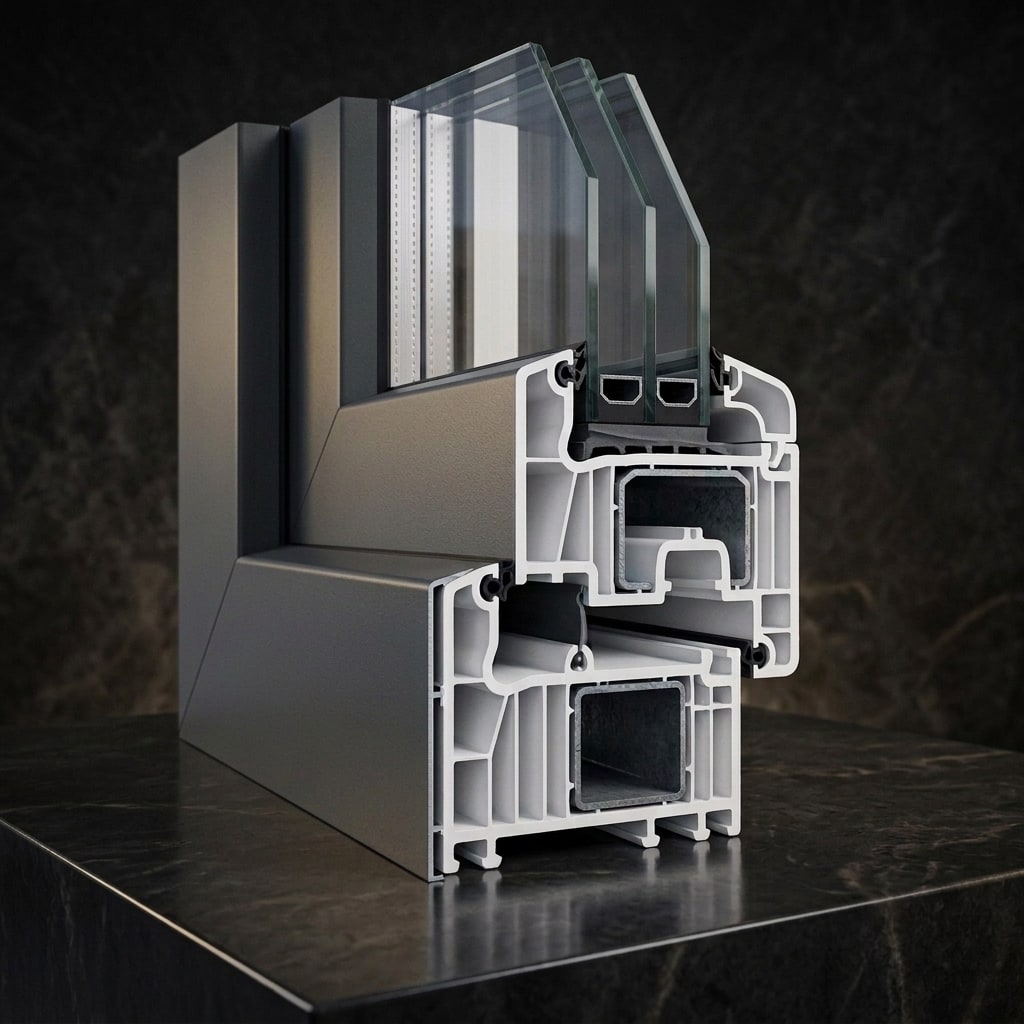

PVC-Alu ThermoShield
Seven-chamber PVC profile with external aluminium cladding and three sealing levels.
- Thermal performance Uw
- 0.77 W/(m²·K)
- Installation depth
- 87 mm
- Glazing unit
- 48 mm, 4/18/4/18/4, Ug 0.5
- Sealing levels
- 3
Wood-Alu Ultra
Increased installation depth for projects with higher thermal-performance requirements.
- Thermal performance Uw
- 0.86 W/(m²·K)
- Installation depth
- 106 mm
- Glazing unit
- 44 mm, 4/16/4/16/4, Ug 0.5
- Sealing levels
- 3
Verified parameters
Technical specifications
Uw values are stated for reference windows. Acoustic and burglary-resistance performance depends on the selected configuration.
Wood-Alu Executive
Uw 0.85 W/(m²·K) for a reference window
Frame and materials
- Installation depth: 95 mm; pine or meranti
- Three sealing levels
Glazing and security
- 40 mm glazing: 4/14/4/14/4, Ug 0.6 W/(m²·K)
- One anti-burglary locking point; acoustics depend on glazing
PVC-Alu ThermoShield
Uw 0.77 W/(m²·K) for a reference window
Frame and materials
- Installation depth: 87 mm; seven-chamber PVC profile
- Three sealing levels
Glazing and security
- 48 mm glazing: 4/18/4/18/4, Ug 0.5 W/(m²·K)
- Two anti-burglary locking points; protection class depends on hardware
Wood-Alu Ultra
Uw 0.86 W/(m²·K) for a reference window
Frame and materials
- Installation depth: 106 mm; pine or meranti
- Three sealing levels
Glazing and security
- 44 mm glazing: 4/16/4/16/4, Ug 0.5 W/(m²·K)
- One anti-burglary locking point; acoustics depend on glazing

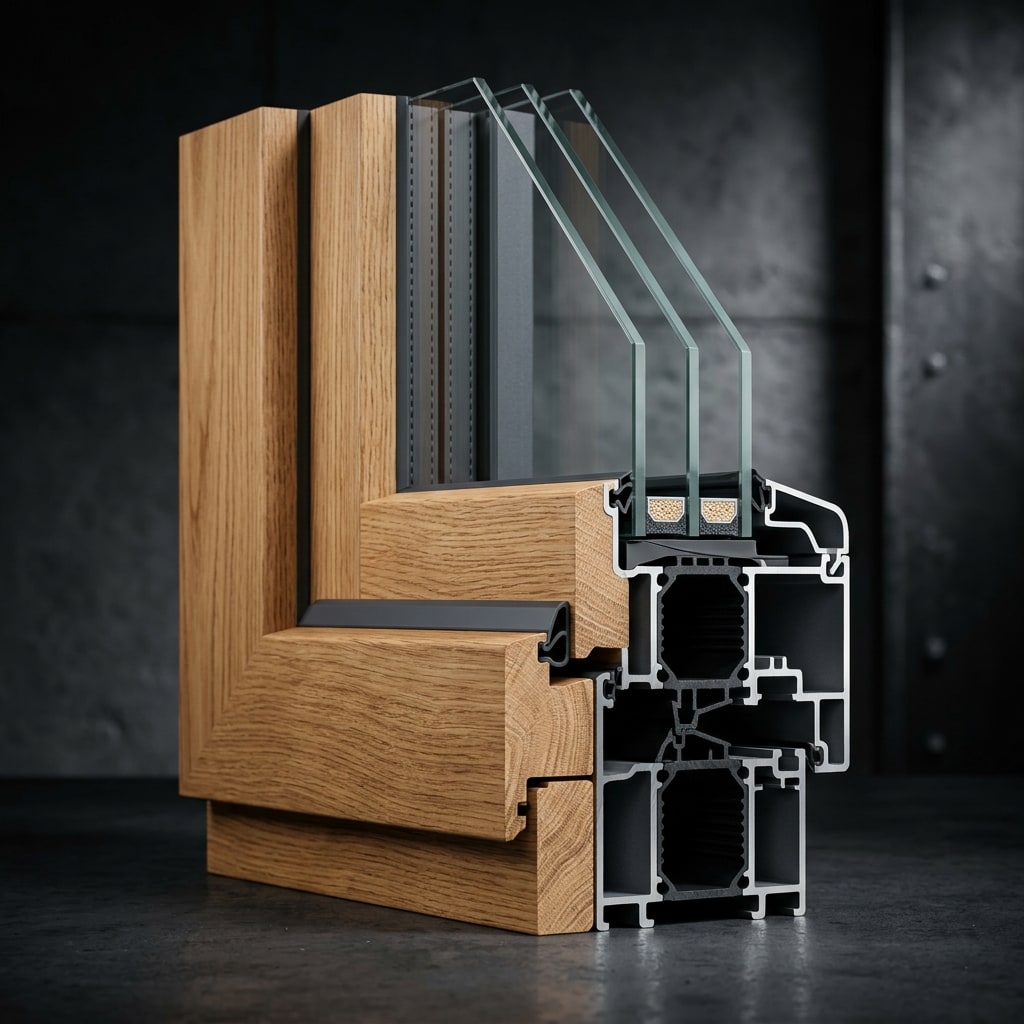

Window construction
Why the system works as one
Select an element to see its role.
Preliminary guide
Window project calculator
The estimate helps establish a budget range and is not a commercial offer.
Estimated budget
Import, engineering preparation and professional KUBE installation.
Estimated cost
Preliminary range. The final price is set after measurement and an engineering specification.

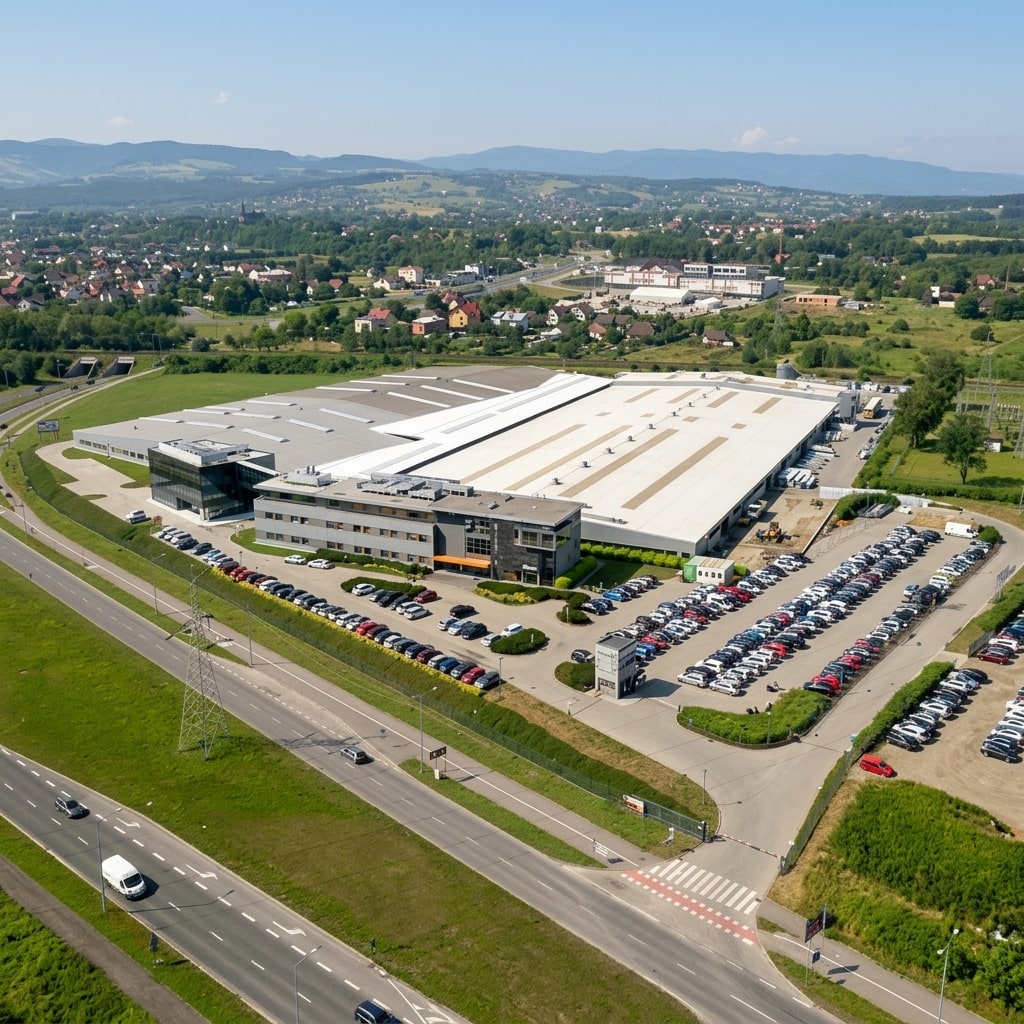

European production
One of Europe’s largest high-tech window plants
The production complex covers more than 33,800 m² and combines three manufacturing halls, modern machinery and systematic quality control.
- Complete production cycle for windows and sliding systems
- In-house test laboratory and quality control
- Powder-coating line for aluminium components
